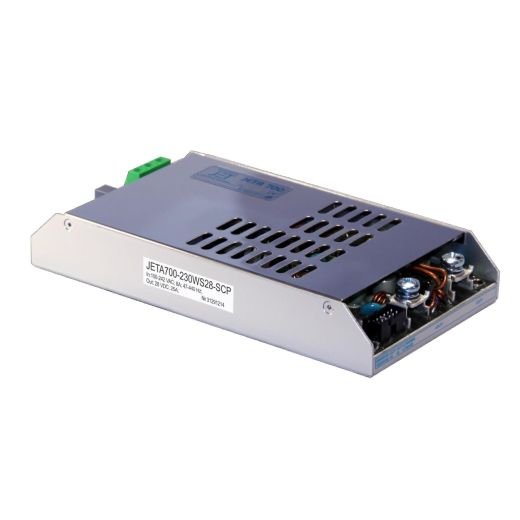

JETA-700-X

POWER SUPPLY AC/DC JETA 700 WATT SUPER COMPACT SERIE - SINGLE OUTPUT - FAN LESS

Please login or register to see the price or place an order.
DESCRIPTION:
Power supply must be fundamental in all kinds of electronic device. Choosing carefully the power supply with the specific requirements of power, reliability and resistance means putting safety in an essential part of the system by reducing the mínimum risk factors and improving performance. The Super Compact serie with low profile are made with miniature electronic components and reduce the dimention of installation. Fan less and super silent.

TECHNICAL SPECIFICATIONS:
Voltage input: 100~242VAC
Power: 700 watt
Models constant voltage output: 12 - 15 - 24 - 27 - 48VDC
Model output current (JETA700-230WS12-CN): 50A @ 12VDC
Model output current (JETA700-230WS15-CN): 40A @ 15VDC
Model output current (JETA700-230WS24-CN): 29,2A @ 24VDC
Model output current (JETA700-230WS27-CN): 25,9A @ 27VDC
Model output current (JETA700-230WS48-CN): 14,6A @ 48VDC
Dimensions: 175mm x 93mm x H 28,6mm
IP protection: IP20
Certifications: CE - RoHS - EN60068-2-27 - EN60068-2-64 - MIL-STD-810F
Protection: Galvanic, short circuit, overload, over voltage, over temperature, recover automatically after fault condition are removed.
Others:
  • Power factor correction PFC.
  • High density power.
  • Automatic input voltage adjustment.
  • Screw terminals.
  • Free air convection, super silent.
  • Metal housing with height <28,6 mm

DATA SHEET:
photo JETA700S-page-001_zpswut7cy7p.jpg photo JETA700S-page-002_zpslul2w1jn.jpg photo JETA300S-page-003_zpsbzqy3r0z.jpg photo JETA700S-page-004_zpstb6tze3x.jpg photo JETA700S-page-005_zps7mrt4das.jpg
  • Availability: Out of Stock
  • Model: JETA-700-X
