RF LED Controllers – Dimmer 1CH

RF dimmer: wireless brightness control for small and medium-sized LED installations

Standard

RF dimmer 1-channel controllers allow wireless regulation of monochrome LEDs with constant voltage (12/24/36/48 V DC), constant current (100 mA to 1500 mA), and mains voltage 110/220 VAC. They are suitable for small to medium-sized installations — from a single room to an entire home — thanks to their ease of use and flexibility. LED drivers are available with input at 12/24/36/48 V DC or 110/220 VAC, with PWM output at constant voltage (CV) or constant current (CC), as well as 110/220 VAC phase-cut versions and relay modules.

System architecture

Dedicated RF receivers: compact or flush-mounted modules for monochrome loads with 1CH PWM output.
Compatible drivers: CV/CC and 110/220 VAC phase-cut variants; relay modules also available.

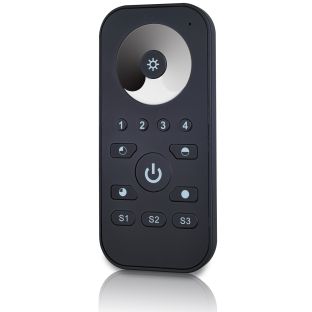

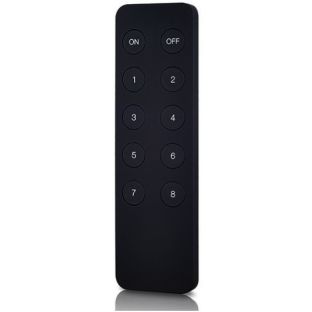

Wireless controls: handheld remotes and wall panels for 502/503 boxes; also usable with push buttons on wall frames.
Retrofit of non-dimmable fixtures: some RF drivers with 110/220 VAC input and adjustable constant current output (100–1500 mA) make it possible to dim and control premium lamps/chandeliers via remotes, wall panels (502/503), or wall push buttons.
Integrated conversion: with RF/DALI and RF/DMX modules, RF commands can be used in wired systems with DALI or DMX protocols.
Quick pairing: simple binding between receiver and remote via dedicated button.
Multi-point/multi-zone topology: one remote can control multiple receivers, and multiple remotes can act on the same circuit.

Advanced features

Easy installation: no signal wiring; only power and LED load.
System modularity: scalable expansion by adding receivers and controls.
Multi-point & multi-zone: independent or synchronized control of multiple areas with the same remote.
Deep dimming <1%: smooth, flicker-free dimming even at low levels.
PWM frequency: 250–500 Hz (entry), 1–4 kHz (mid), 8–16 kHz (high-end), stable dimming suitable for photo/video.
Visual comfort: brightness tailored for relaxation, task lighting or decorative accent.
Longer lifetime: lower operating levels reduce heat and extend LED life.
Energy savings: optimized consumption with reduced indirect CO₂ emissions.

Typical applications

Residential: bedrooms, living rooms, kitchens, corridors, stairs, entries; small homes with local or multi-zone wireless control.
Hospitality: hotel rooms, lobbies and corridors, reading nooks and common areas with adjustable white light.
Retail: shop windows, cash desks, displays and promotional corners.
Offices & studios: workstations, meeting rooms, receptions and waiting areas with illuminance control.
Standalone spaces: relaxation rooms, small clinics, compact libraries, service and back-office areas.
