Professional DMX512 LED Control Systems

DMX512 architecture and lighting control applications

DMX Standard

DMX512 is the international standard for digital lighting control in stage, architectural and professional applications. Originally designed for theatres, it is now widely used in dynamic facades, permanent installations and complex light design projects. A typical DMX system consists of a console/master (or PC software) generating the signal and decoder/slave units converting it into PWM outputs for monochrome, CCT, RGB, RGBW, RGBWA and RGBWAU LEDs. Each universe handles up to 512 channels. A wired DMX line supports up to 32 devices per segment (with proper termination), expandable through splitters/repeaters. Ethernet transmission (sACN/Art-Net) enables dozens or hundreds of universes in parallel.

  • DMX512 (1986): first definition of the protocol.
  • DMX512(1990): revision consolidating electrical and wiring specifications.
  • DMX512-A (ANSI E1.11): updated and fully interoperable version among manufacturers.
  • RDM (ANSI E1.20): bidirectional extension for addressing, remote configuration, diagnostics and device status feedback.
  • sACN (ANSI E1.31): DMX data transport over Ethernet/IP (Streaming ACN) to manage many universes across LAN/WAN.
  • Art-Net: widely adopted Ethernet protocol for routing DMX/RDM data over IP networks.

System Architecture

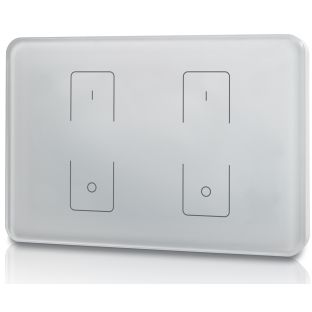

  • DMX consoles / software: generate signals via physical DMX or Art-Net/sACN over network.
  • DMX LED decoders / drivers: translate DMX data into PWM (or triac) outputs for LED loads.
  • DMX cabling: 120 Ω shielded cable with 3- or 5-pin XLR connectors and line terminator.
  • Splitters / boosters: regenerate the signal and branch the DMX network safely.
  • Wireless DMX: radio links point-to-point or multipoint (range depends on transceiver type).

Advanced Features

  • Multi-zone synchronization: precise timing consistency across many decoders.
  • RDM: addressing, parameter reading and diagnostics without physical device access.
  • Merging and priority control: combine multiple DMX sources/masters on the same or multiple universes.
  • IP scalability: Art-Net/sACN simplify distribution of numerous universes over LAN.
  • High-resolution dimming: 8/16-bit mapping for smooth, flicker-free transitions (broadcast/TV-ready).

Typical Applications

  • Theatres, concerts and live events: complex rigs with advanced color and motion effects.
  • Clubs and venues: dynamic multicolor lighting and synchronized special FX.
  • Multimedia installations: fairs, pavilions, touring shows with PC/console control.
  • Dynamic architectural facades: hotels, museums, retail with scheduled lighting timelines.
  • Light-design projects (indoor/outdoor): smooth transitions, white-tuning and precise colorimetry.
  • Scenic gardens and parks: large-area decorative lighting and dynamic effects.

Available Types

  • Single-channel (1 CH): dimmers for white or fixed-color LEDs.
  • CCT (2 CH): adjustable warm/cool white temperature control.
  • RGB (3 CH): three-channel color mixing.
  • RGBW (4 CH): RGB plus dedicated white channel.
  • RGB + CCT (5 CH / RGBWA): color plus dynamic white with optimized DMX mapping.
  • RGB + CCT + UV (6 CH / RGBWAU): includes UV for special effects or UV-finish applications.
